| Vehicle Dimensions | |
|---|---|
| Length | 1995 mm |
| Width | 630 mm |
| Height | 1070 mm |
| Wheelbase | 1370 mm |
| Weight | 82 – 100 KGs (per battery Capacity) |
| Payload | 200 KGs |
| Max. Speed | <25 KMPH |
| *Range (per Charge) | 60 KM – 65 KM |
| or | 75 KM – 80 KM |
| or | 90 KM – 95 KM |
| Motor | |
|---|---|
| Type | BLDC Motor |
| Output | 240 W @ 60V |
| No Load Revolution | 350 RPM |
| Low Voltage Protection | 51 V |
| Battery | |
|---|---|
| Type | Lithium Ferrous Phosphate |
| Charging In | 3:00H/3:30H/4:00H |
| Capacity | 24Ah/30Ah/36Ah |
| Voltage | 60 V |
| Controller | |
|---|---|
| Power Rating | 240 Watts |
| Operating Voltage | 60 V |
| Suspension | |
|---|---|
| Front | Telescopic Fork |
| Rear | Hydraulic Shock Absorbers |
| Tyre | |
|---|---|
| Type | Tube Less |
| Front Size | 16 Inches 30 PSI(2.5 kgf/cm2) |
| Rear Size | 16 Inches 30 PSI(2.5 kgf/cm2) |
| Breaks | |
|---|---|
| Front | Drum |
| Rear | Drum |
| Lamps | |
|---|---|
| Head | LED |
| Tail | Bulb |
| Blinkers | Bulb |
| Others | |
|---|---|
| Side Stand Sensor | Yes |
| Wheels | Spokes |

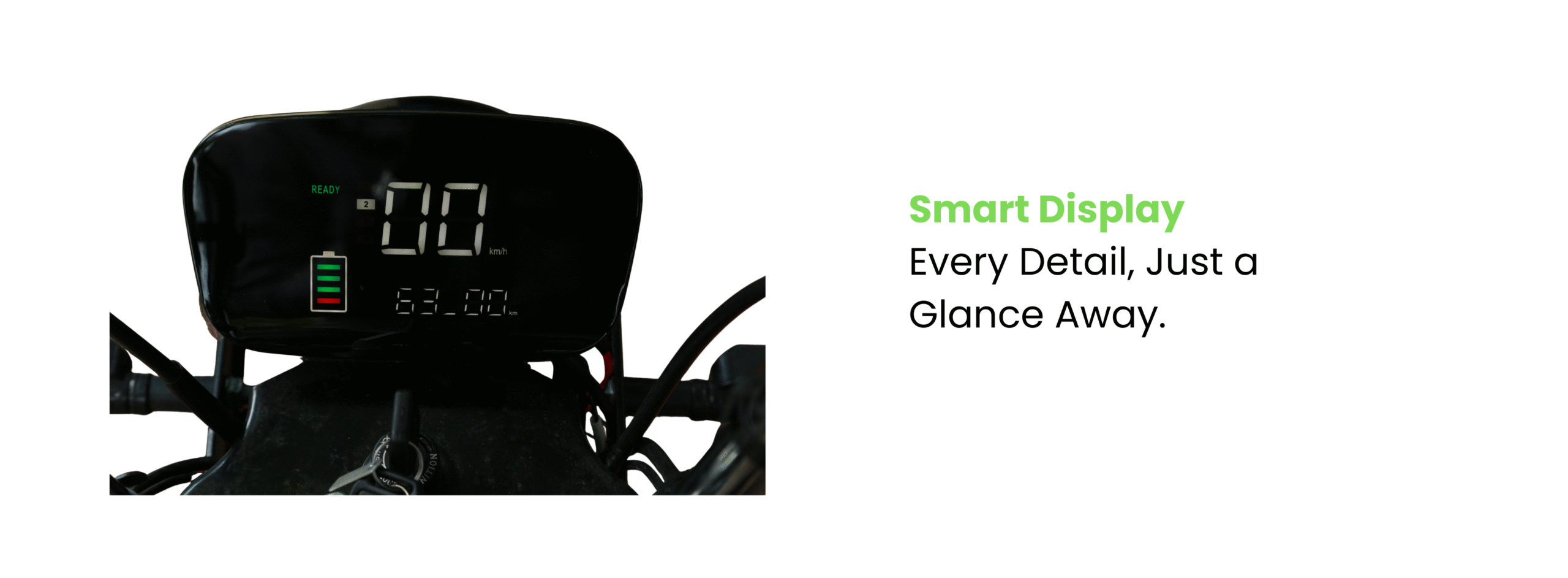

| Speedometer | Digital Display |
| Ground Clearance | 195 mm |
