| Vehicle Dimensions | |
|---|---|
| Length | 1730 mm |
| Width | 690 mm |
| Height | 1270 mm |
| Wheelbase | 1230 mm |
| Weight | 76 – 88 KGs (per battery Capacity) |
| Payload | 150 KGs |
| Max. Speed | <25 KMPH |
| *Range (per Charge) | 60 KM – 65 KM |
| or | 80 KM – 85 KM |
| or | 100 KM – 105 KM |
| Motor | |
|---|---|
| Type | BLDC Motor |
| Output | 240 W @ 60V |
| No Load Revolution | 350 RPM |
| Low Voltage Protection | 51 V |
| Battery | |
|---|---|
| Type | Lithium Ferrous Phosphate |
| Charging In | 3:00H/3:30H/4:00H |
| Capacity | 24Ah/30Ah/36Ah |
| Voltage | 60 V |
| Controller | |
|---|---|
| Power Rating | 240 Watts |
| Operating Voltage | 60 V |
| Suspension | |
|---|---|
| Front | Telescopic Fork |
| Rear | Hydraulic Shock Absorbers |
| Tyre | |
|---|---|
| Type | Tube Less |
| Front Size | 10 Inches 30 PSI(2.1 kgf/cm2) |
| Rear Size | 10 Inches 30 PSI(2.1 kgf/cm2) |
| Breaks | |
|---|---|
| Front | Disc |
| Rear | Drum |
| Lamps | |
|---|---|
| Head | LED |
| Tail | LED 12 V 5W Bulb |
| Blinkers | LED 12 V 5W Bulb |
| Others | |
|---|---|
| Side Stand Sensor | No |
| Wheels | Alloy |

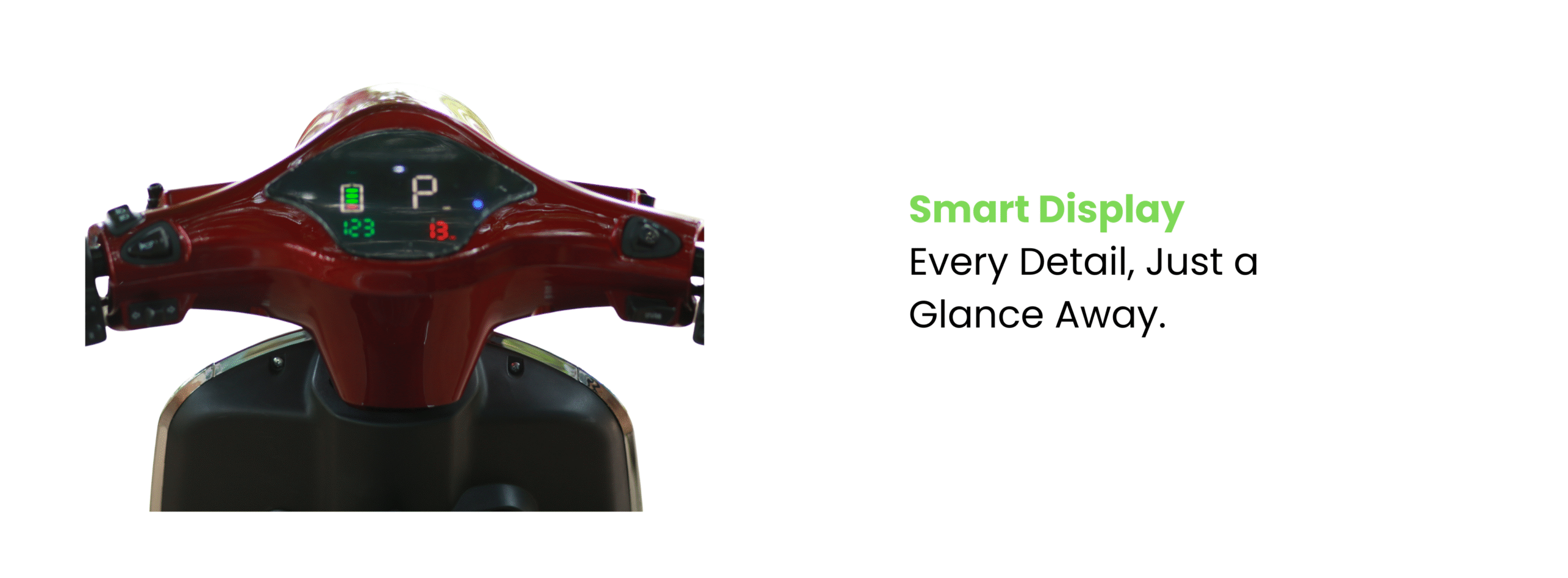

| Speedometer | Digital Display |
| Ground Clearance | 170 mm |
