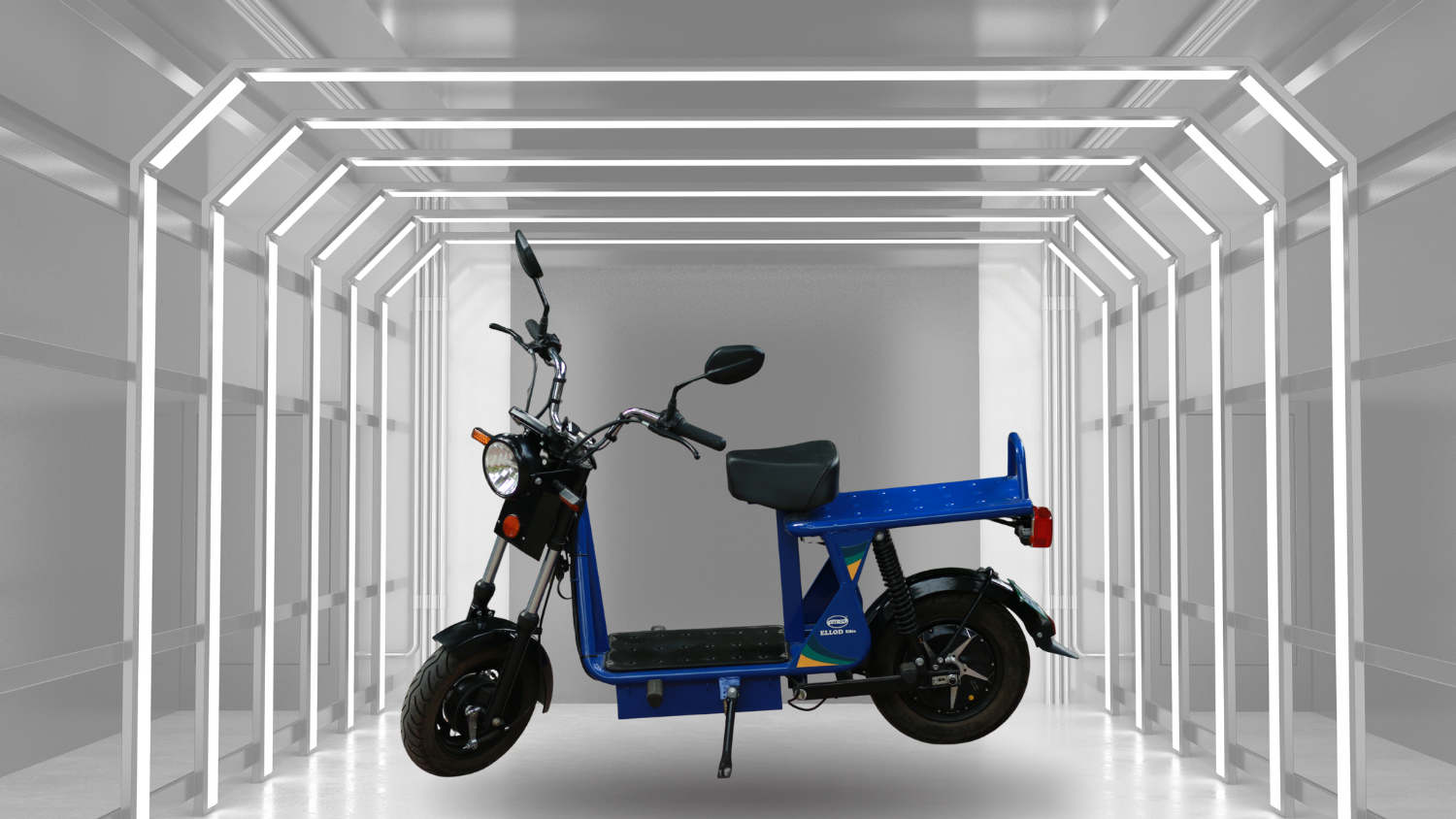

Ellod Elite
Motor warranty : 1 Year
Battery warranty : 3 Years
Vehicle Dimensions | |
---|---|
Length | 1685 mm |
Width | 700 mm |
Height | 990 mm |
Wheelbase | 1170 mm |
Weight | 83 KGs (per battery Capacity) |
Payload | 150 KGs |
Max. Speed | <25 KMPH |
*Range (per Charge) |
80 KM - 90 KM |
Motor | |
Type | BLDC Motor |
Output | 240 W @ 60V |
No Load Revolution | 350 RPM |
Low Voltage Protection | 51 V |
Battery | |
Type | Lithium Ferrous Phosphate |
Charging In | 3:30H |
Capacity | 30Ah |
Voltage | 60 V |
Controller | |
---|---|
Power Rating | 240 Watts |
Operating Voltage | 60 V |
Suspension | |
Front | Telescopic Fork |
Rear | Hydraulic Shock Absorbers |
Tyre | |
Type | Tube Less |
Front Size | 10 Inches 30 PSI(2.1 kgf/cm2) |
Rear Size | 10 Inches 30 PSI(2.1 kgf/cm2) |
Breaks | |
Front | Drum |
Rear | Drum |
Lamps | |
Head | LED |
Tail | Bulb |
Blinkers | Bulb |
Others | |
Side Stand Sensor | Yes |
Wheels | Alloy |
Speedometer | Digital Display |
Ground Clearance | 160 mm |
